Three Bay Garages with Upper Floors - WS01762

This is a building we have previously constructed which you may want to use as a starting point for your design. All our buildings are designed and manufactured to your individual specifications.

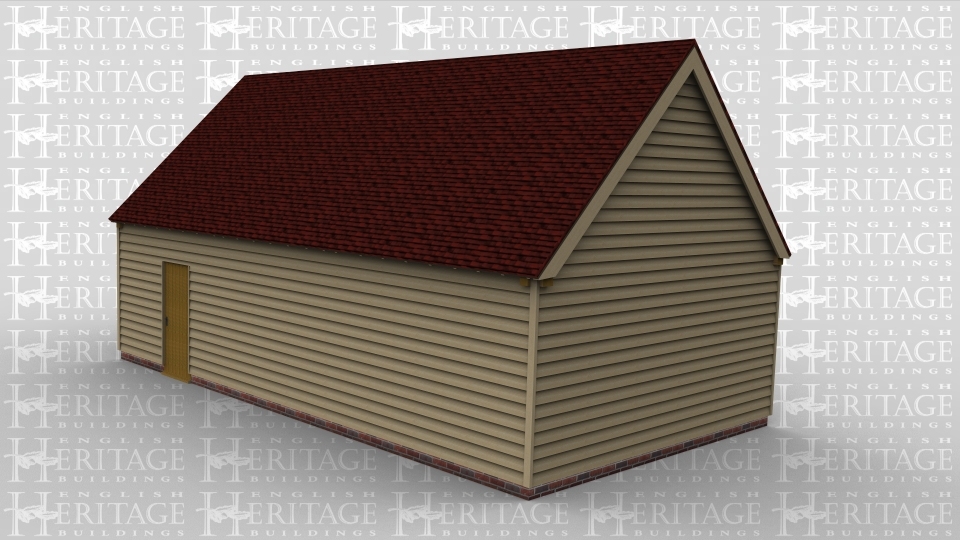

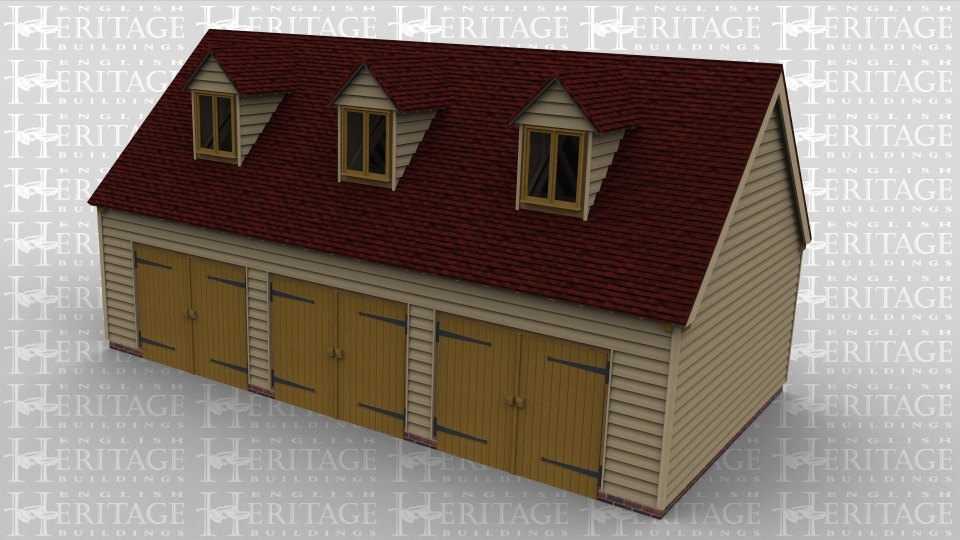

A oak framed garage with 3 bays on the ground floor and a further 3 bays on the first floor. On the first floor, each of the 3 bays is enclosed with a pair of iroko garage doors and at the read, there is a solid single door. On the first floor there is a 2 light dormer window at the front of each bay  to allow plenty of light into the upper floor.
  • WS01762 Oak Frame
Special Offer

Details

A oak framed garage with 3 bays on the ground floor and a further 3 bays on the first floor. On the first floor, each of the 3 bays is enclosed with a pair of iroko garage doors and at the read, there is a solid single door. On the first floor there is a 2 light dormer window at the front of each bay to allow plenty of light into the upper floor.

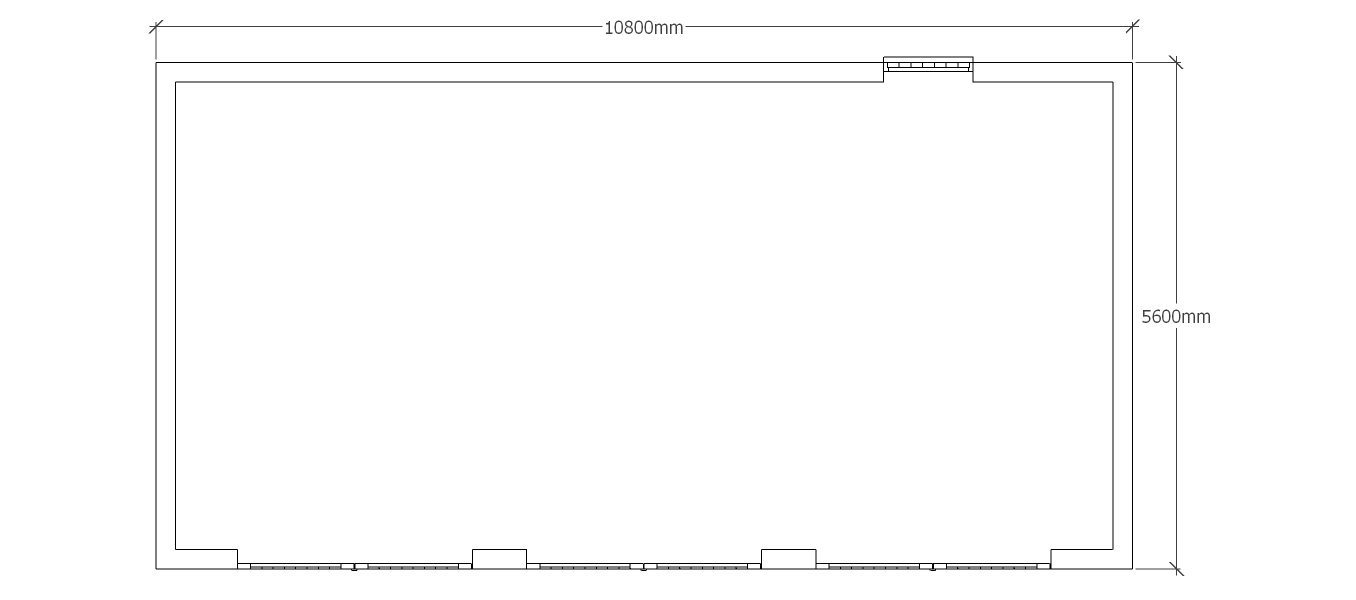

Dimensions

G/F Area (sq m) 60.48
F/F Area (sq m) 38.88
Total Area (sq m) 99.36
Length (m) 10.8
Depth (m) 5.6
Ridge Height (m) 5.7
Roof Pitch (deg) 45
Number of Bays 3
Location Cheshire
