Undersized or Oversized Timbers and Oak-Framed Buildings
When you start exploring oak-framed buildings, it’s natural to focus on the things you can see first. This might be proportions or the roofline. It may even be the way the building will sit in the landscape and complement your home. But there’s also a subtler detail that has a huge impact on how your project performs over time: whether the timbers, braces, and joints have been designed and made to the correct sizes.
If any components in your frame are under or oversized, there is a risk that the building may not perform as intended. That is a vital flaw that could become dangerous later.
Why Timber Sizing Matters in Oak-Framed Buildings
A conventional “gravity” build relies heavily on walls and materials that carry loads down through the structure. A structural oak frame is different. It is designed to be self-supporting, which means the posts, beams, braces and joints must work together in balance. Size, strength, proportion, and positioning all matter, as does the correct approach to bracing.
If a key member is undersized, it may flex more than expected under load or in high winds. If it’s oversized without proper engineering, it can create an imbalance in the structure, introduce awkward load paths, or lead to compromises elsewhere. This is particularly at the joints, where timber dimensions and detailing need to be precise.
The reassuring point is this: none of this should be guesswork if you are working with the right team. A quality oak frame building, such as those produced by our team, is engineered as a complete system.
What is Racking?
Racking is the term used when a structure is forced out of square. Imagine a rectangle gradually becoming a parallelogram under sideways pressure. This is most commonly caused by wind forces exerting horizontal load on the building, especially where elevations are more exposed.
To meet Building Regulations, a building must be shown to withstand those forces. That’s why structural calculations need to be site-specific, taking into account the orientation of the building, local exposure, and other factors that influence wind loading.
How racking is resisted depends on the design and whether an elevation is open or enclosed:
- Open elevations typically rely on knee braces across the corners between post and beam. These braces must be sized appropriately as part of the structural design because the requirements change with the overall scale of the building.
- Enclosed elevations may be braced using diagonal studwork or sheathed with materials such as OSB3 or plywood to provide racking resistance. This is sometimes combined with braces that become an attractive internal feature.
Whether you’re planning a garage, an extension, or even larger projects inspired by oak-framed office buildings, the principle for wind load is the same.
What is Sagging?
Sagging, also known as deflection, is the natural downward movement of a beam when load is applied. For example, an eaves beam carries the weight of the roof as rafters sit on it, so a measured amount of movement is expected.

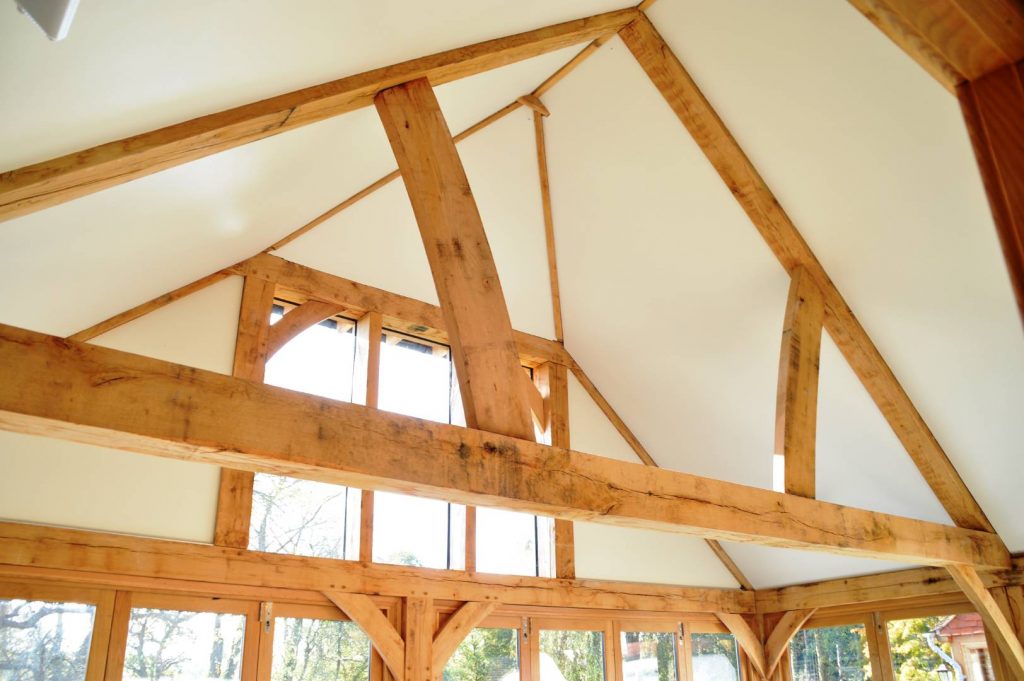

With a vaulted roof, there can also be sideways deflection, depending on how the roof is designed. Structural beams need to be sized correctly to withstand these loads, but it’s worth knowing that oak is a natural material. You cannot eliminate all movement, and you shouldn’t be promised that you can. Instead, quality design allows for natural settlement within safe parameters.
It’s completely normal for a roof to settle and for the frame to adjust slightly over time. This is one reason garage doors may need minor adjustment as the building beds in. When the frame is engineered correctly, this movement is anticipated, calculated for, and managed.
Understanding Joints
In traditional oak framing, the mortise and tenon joint is fundamental. It’s also one of the areas where shortcuts can quietly undermine the strength of an otherwise impressive-looking frame.
Some framers reduce the size of tenons to make on-site assembly easier, so that braces can be slotted in after the main beams are in position. The problem is that, if a tenon is significantly smaller than the mortise, the timber-to-timber connection is no longer doing what it was designed to do.
In that situation, the peg can effectively become the joint. But a peg should be a locator and a lock for a properly fitted mortise and tenon, not the primary structural element-carrying load. Peg positioning matters here too; there must be enough timber around the drilled hole to maintain strength and meet minimum standards. If there isn’t, the joint becomes more vulnerable, and the risk of racking increases.
What You Should Be Asking When Choosing an Oak Frame
If you’re comparing oak frame buildings, here are a few questions that can help you choose with confidence:
- Is the frame structurally engineered for your site and orientation?
- How is racking resistance achieved in the design (braces, sheathing, or a combination)?
- How are joints cut, checked, and fitted so the timber connection (not the peg) does the work?
- What quality assurance is in place during grading, machining, and manufacturing?
